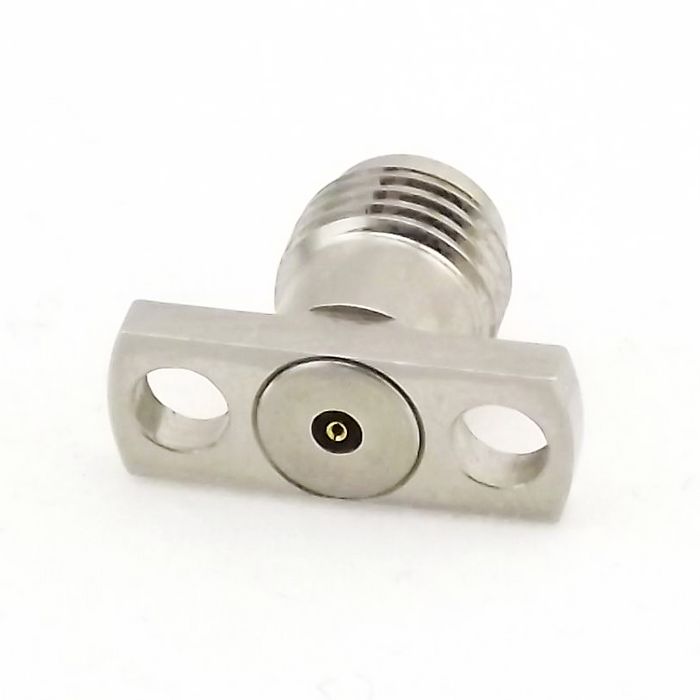

2.92mm Female 360°Metal to Metal Contact 40GHz

  -----------C29FS15F1 RF Coaxial Connector-----------



Features and Advantages:

1. Operating frequency up to 40GHz

2. Low VSWR: DC to 27 GHz........1.10:1 max.

                          27 to 40GHz......1.15:1 max.

3. Temperature Rating: -55°C to +135°C

Interface:

Per MIL-STD-348

2.92 mm (SMK) Figs. 323-1 and 323-2

Construction:

1. Housing: Stainless Steel, Passivated

2. Contact: Female: Beryllium Copper (BeCu);  Gold Plated Per MIL-G-45204

                   Male: Brass, Gold Plated Per MIL-G-45204

3. Center Contact Capture: PEI

4. Certification: RoHS
